Discover the Automated Winston-Lutz 2D & 3D Analysis Tools by Kaptan Data Solutions
At Kaptan Data Solutions, we’re dedicated to enhancing precision and efficiency in medical physics. Our latest tools for Winston-Lutz 2D and 3D analysis bring the power of automation and the accuracy of the PYLINAC library right to your fingertips. These tools streamline the entire process of EPID image analysis, delivering faster, more accurate results for radiation therapy centers.
Whether you’re analyzing a single EPID image in 2D or handling multiple EPID images stored in a ZIP file for 3D Winston-Lutz analysis, our tools take care of the heavy lifting. Built on the robust WinstonLutz.analyze() function from PYLINAC, they ensure precision while minimizing manual input.
Curious to try them out? Experience the online demo for 2D analysis or Explore the 3D analysis demo.

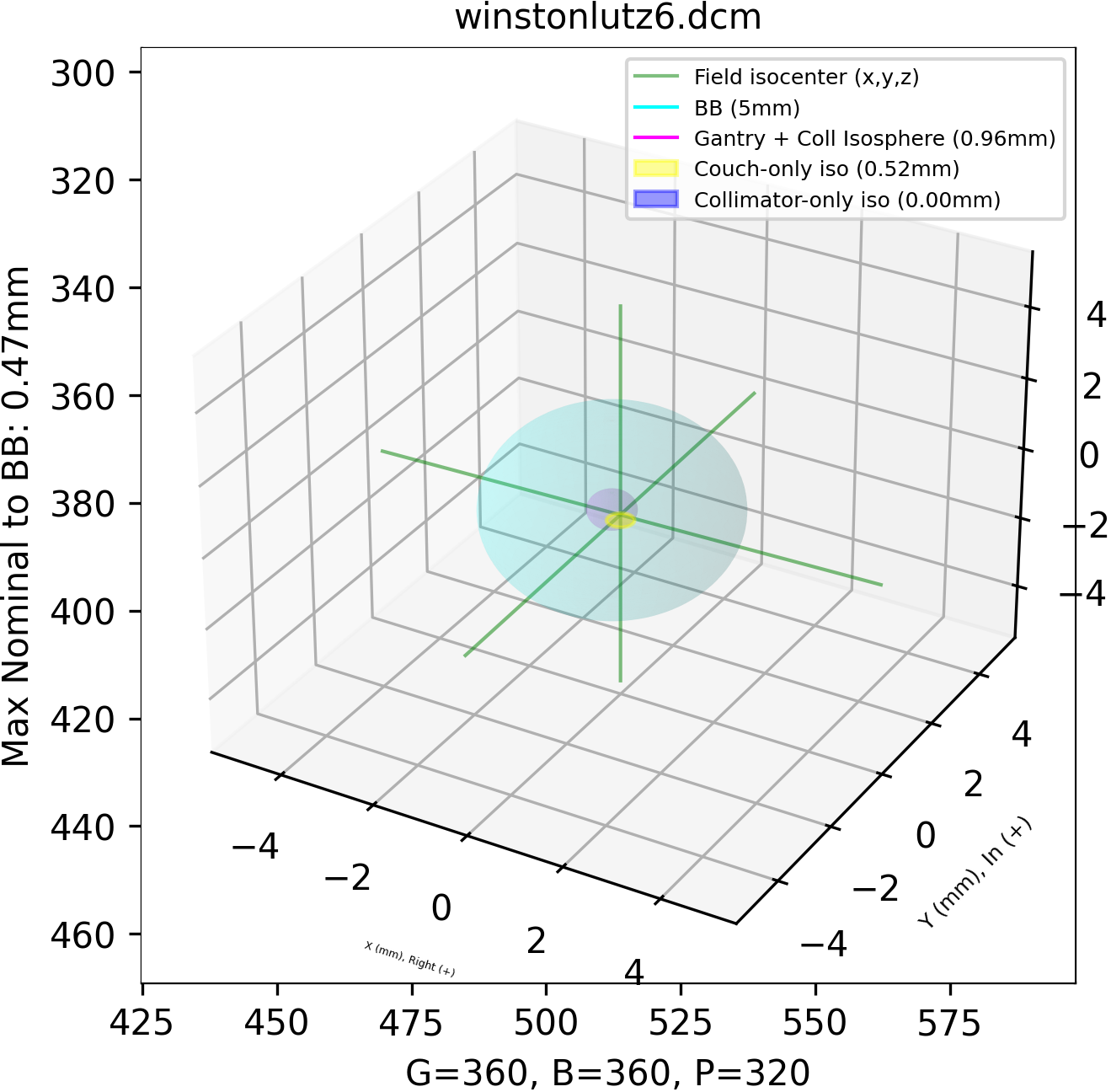

The image above shows an overview of the 3D analysis tool, demonstrating the precise alignment of EPID images and calculated deviations.
Automating Precision: Simplifying the Complex with Winston-Lutz 2D & 3D Analysis
We know that accuracy is paramount in your field. That’s why our Winston-Lutz tools automate the intricate task of analyzing beam misalignment with exceptional precision. Once you upload your EPID images (whether a single file for 2D or a ZIP file for 3D analysis), our tools handle everything—from analyzing ball bearing (BB) position to calculating deviations between the central axis (CAX) and BB.
The 2D tool is designed for quick and straightforward analysis, perfect for routine checks, while the 3D tool dives deeper, analyzing multiple gantry, collimator, and table angles for a full 3D positioning assessment. Both tools provide instant, actionable results—so you can focus on clinical decision-making instead of manual calculations.
Future-ready: Our upcoming updates will feature fully integrated workflows for real-time image fetching from your radiotherapy center’s network. This means that soon, EPID images can be automatically processed and analyzed without any manual uploads.

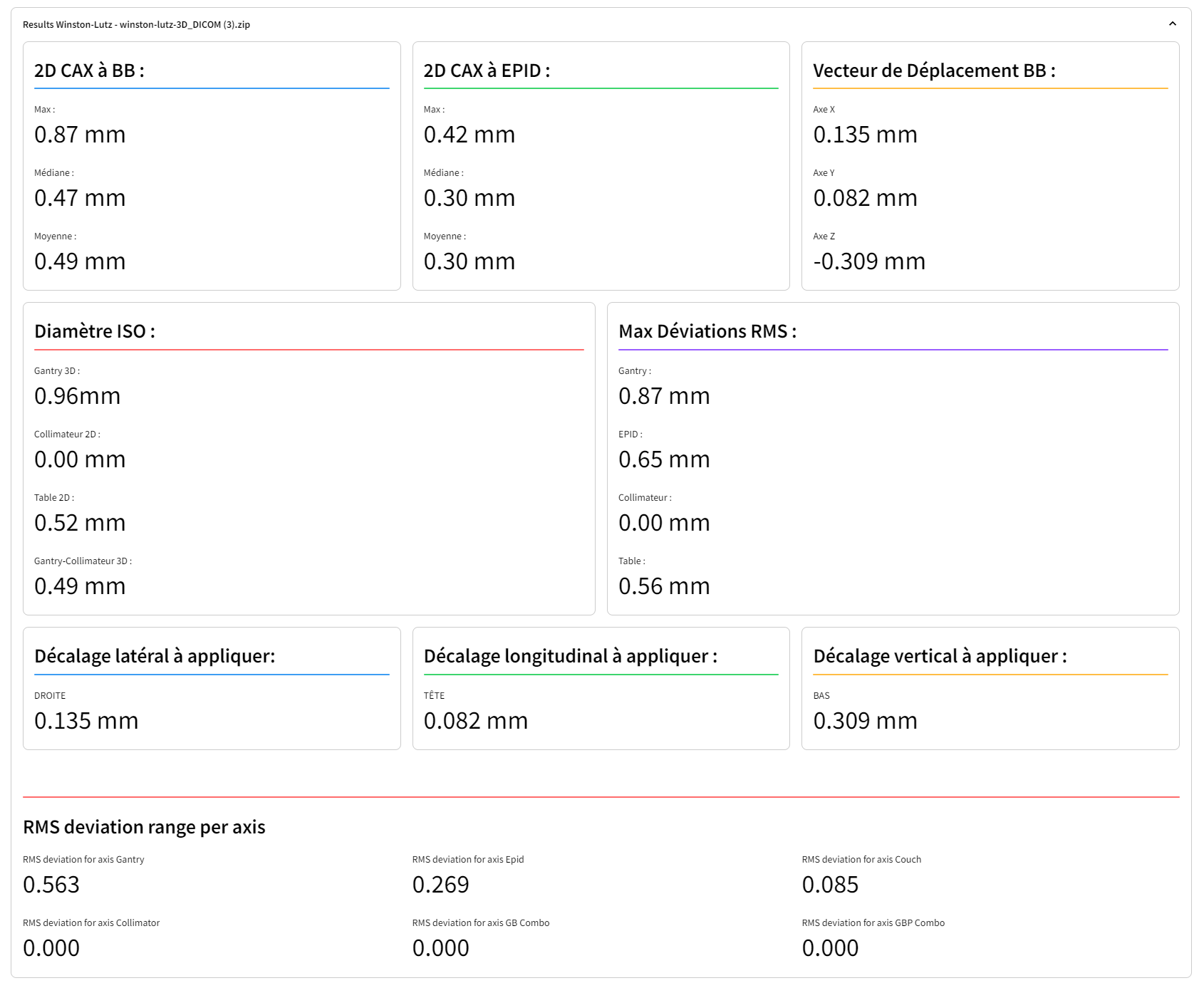

The image above shows the Dashboard Winston-Lutz 3D.
Comprehensive Control with Customizable Parameters
While our tools are automated, we know that flexibility is essential. That’s why we’ve integrated key customization options to tailor each analysis to your exact needs. Whether you’re adjusting the BB size, reference angles, or tolerance settings, our tools adapt to fit your clinical protocols.
Key adjustable settings include:
- BB Size: Define the size of the ball bearing used in your analysis.
- Open Field Analysis: Center the field on the EPID for more precise open-field measurements.
- Align BB with Radiation Isocenter: Apply a virtual shift to align the BB perfectly with the radiation isocenter for highly accurate results.
- Gantry/Collimator/Table Angle Reference: Adjust angles according to your measurement protocols for complete alignment accuracy.

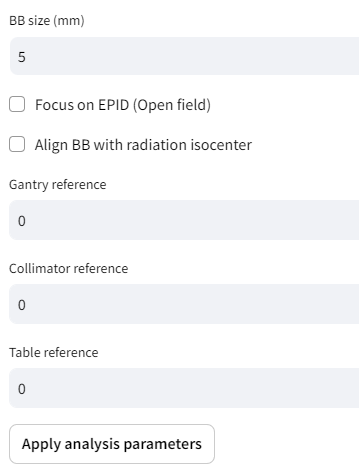

This image highlights the customizable analysis options available in the 3D Winston-Lutz tool, allowing for greater control over each test.
Real-Time Visual Feedback and Detailed Reporting
Both the 2D and 3D Winston-Lutz tools offer real-time visual results, giving you immediate feedback on the image alignment and positioning errors. With processed images that clearly mark the CAX, BB, and other critical elements, you can visually confirm the results and identify any misalignments at a glance.
Once the analysis is complete, you can download a fully customizable PDF report. Add your personal details and comments to create a professional, comprehensive record of each test. This feature is perfect for quality assurance documentation, ensuring that all results are stored accurately and ready for audit.
Why Choose Kaptan Data Solutions’ Winston-Lutz 2D & 3D Tools?
By choosing Kaptan Data Solutions, you’re embracing cutting-edge automation tailored to the needs of medical physicists. We combine the power of PYLINAC with the expertise of our development team to create intuitive, efficient tools that enhance your workflow and reduce the time spent on manual analysis.
- Seamless automation: Upload images, and let the tool do the work—from analysis to report generation.
- Customizable options: Tailor each analysis to your exact specifications with adjustable parameters.
- Real-time visual feedback: Instantly verify alignment and positioning errors.
- Comprehensive reporting: Download detailed PDF reports that document every test with precision.
The Future of Winston-Lutz Analysis Is Here
Our vision goes beyond automating single analyses. We aim to develop a comprehensive dashboard that tracks all quality assurance tests across your radiotherapy center, offering deeper data insights and empowering better clinical decisions. With Kaptan Data Solutions, you’re not just automating your tests—you’re optimizing your entire quality assurance process.
Experience the Future of EPID Analysis Today
Step into the next generation of medical image analysis with our Winston-Lutz 2D & 3D tools. Whether you’re running a quick check or a full 3D analysis, Kaptan Data Solutions delivers precision, automation, and flexibility—all in one place.
